AXIS 282/282A - Product Description

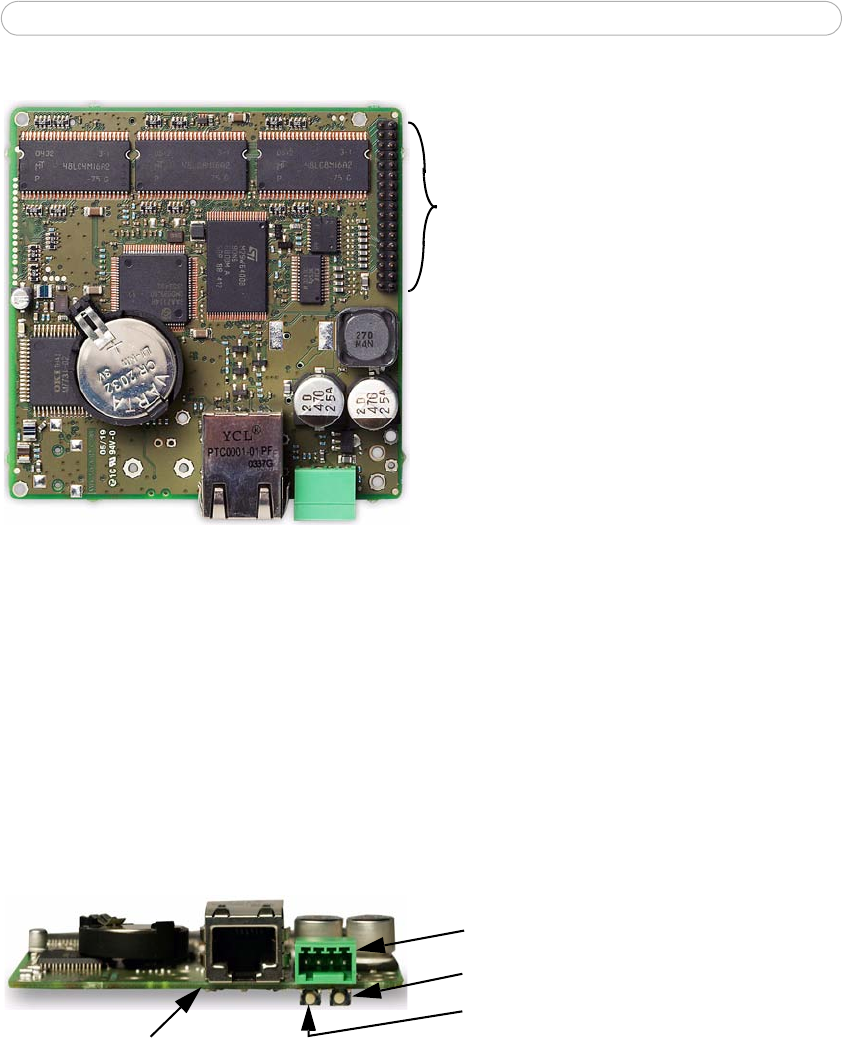

AXIS 282/282A Top

The AXIS 282/282A has 34-Pin Header for several connections including:

• Serial port, configurable as RS-232 or RS-485, which

is typically used for con-

necting Pan/Tilt/Zoom devices.

• Video in and out connections.

• Audio in and out connections.

• LED outputs

• An auxiliary connection po

int for DC power.

See The Terminal I/O Connector,

on page 56 and The 34-Pin Header, on page 57 for more

information.

AXIS 282/282A Front

Terminal block - The front of the AXIS 282/282A has one each in- and out connector, and

a power and GND connection.

34-pin header

Flash button

Terminal block

Control button

Network connector

1 2 3 4 5 6 7 8 9 10 11 ... 80 81

AXIS 282/AXIS 282A 1
Video Server 1
Integrator and User’s Manual 1
